Statistics of station Krägga

Here you can find statistics of the TOA lightning detection station Krägga.

  • Id: 2265
  • Firmware: 1.7
  • Controller: 10.4
  • Amplifier: 12.3
  • Antenna 1+2: Loop, diameter=650mm, windings=20, shielded
  • Comment: System Red 65cm sheilded loop antennas 20trn, on roof

General statistics of the last hour

  • Station active: yes
  • Last update: 9.8 minutes ago
  • Last detected stroke: 2024-11-12 15:30:15 UTC
  • Strokes: 97
  • Signals: 158
  • Locating ratio: 61.4%
  • Stroke ratio: 6.6% (Map)
  • Strokes station min participants (14-19 stations): 0 (0.0%)

Last signal

Shows one of the latest signals which the station did send to the server.

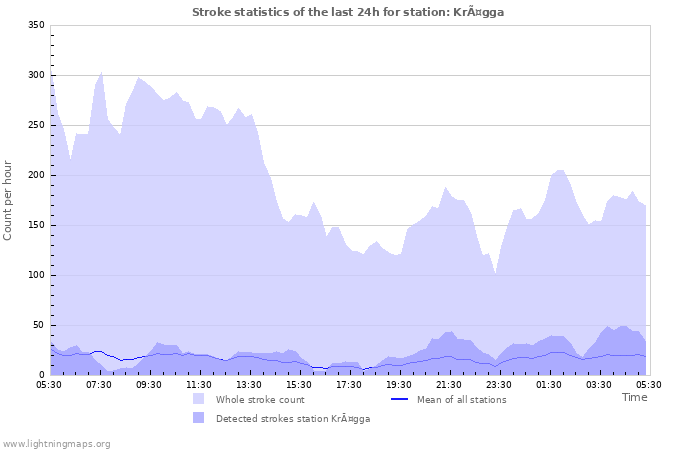

Stroke count

Here you can see the whole stroke count per hours detected by the lightning network, the count of detected strokes/h of the station Krägga and the mean stroke count for all stations

Graphs: Stroke statistics

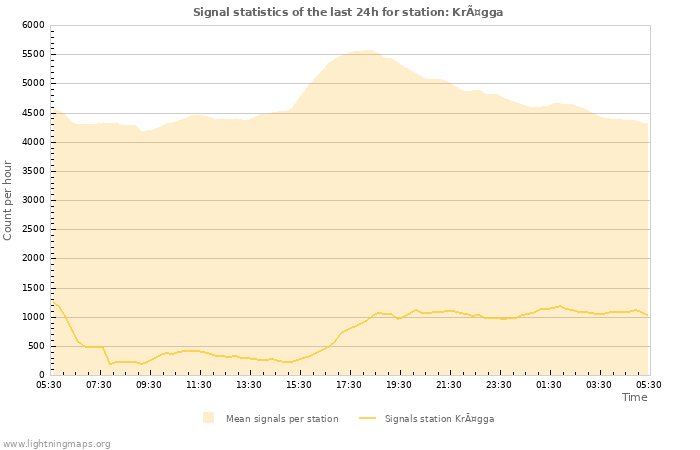

Signal count

The count of received signals per hour of the station Krägga and also mean value of all stations.

Graphs: Signal statistics

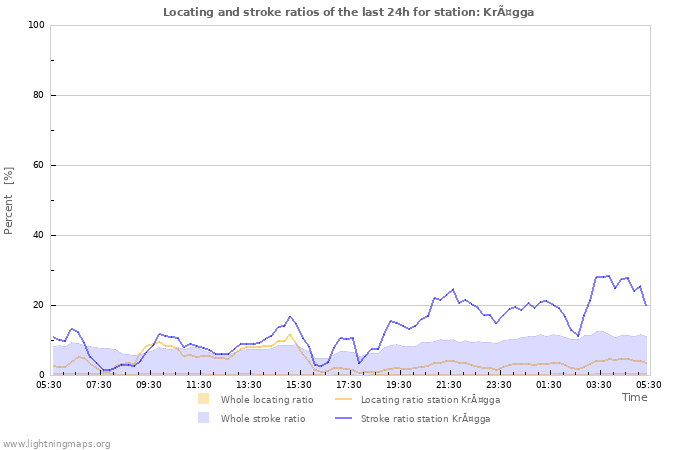

Ratios

Stroke and locating ratios are important parameters for the correct adjustment of the station. Calculations:
locating ratio = (detected strokes of the station) / (signals of the station)
stroke ratio = (detected strokes of the station) / (network stroke count)

Graphs: Locating and stroke ratios

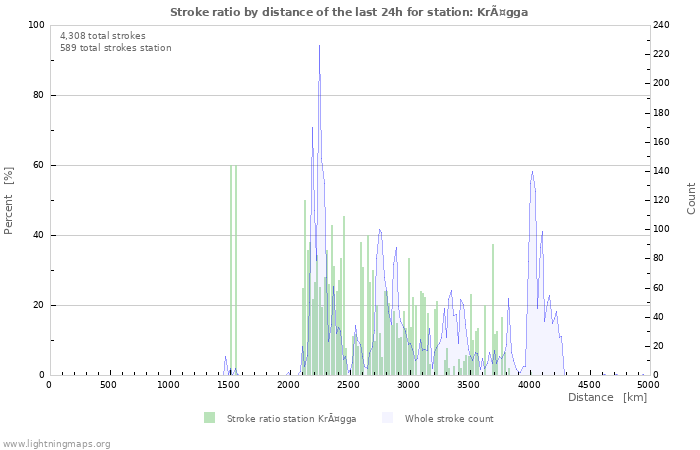

Stroke ratio by distance

Overview about the own locating ratio over distance from stations. Whole stroke count over distance is also visible.

Graphs: Stroke ratio by distance

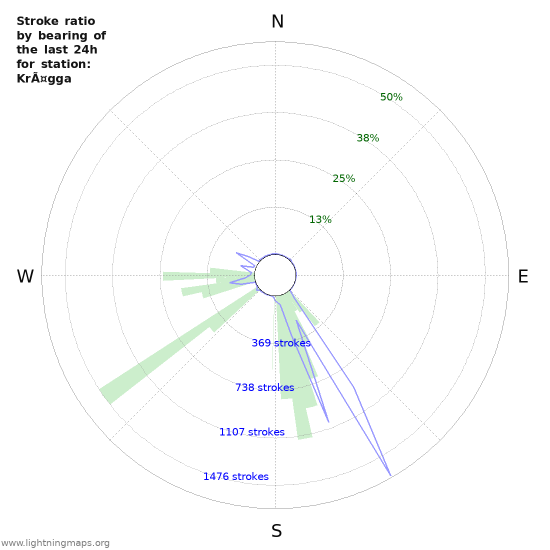

Stroke ratio by bearing

Own locating ratio over the geographic direction. For better comparision, there is also the whole stroke count visible.

Graphs: Stroke ratio by bearing
